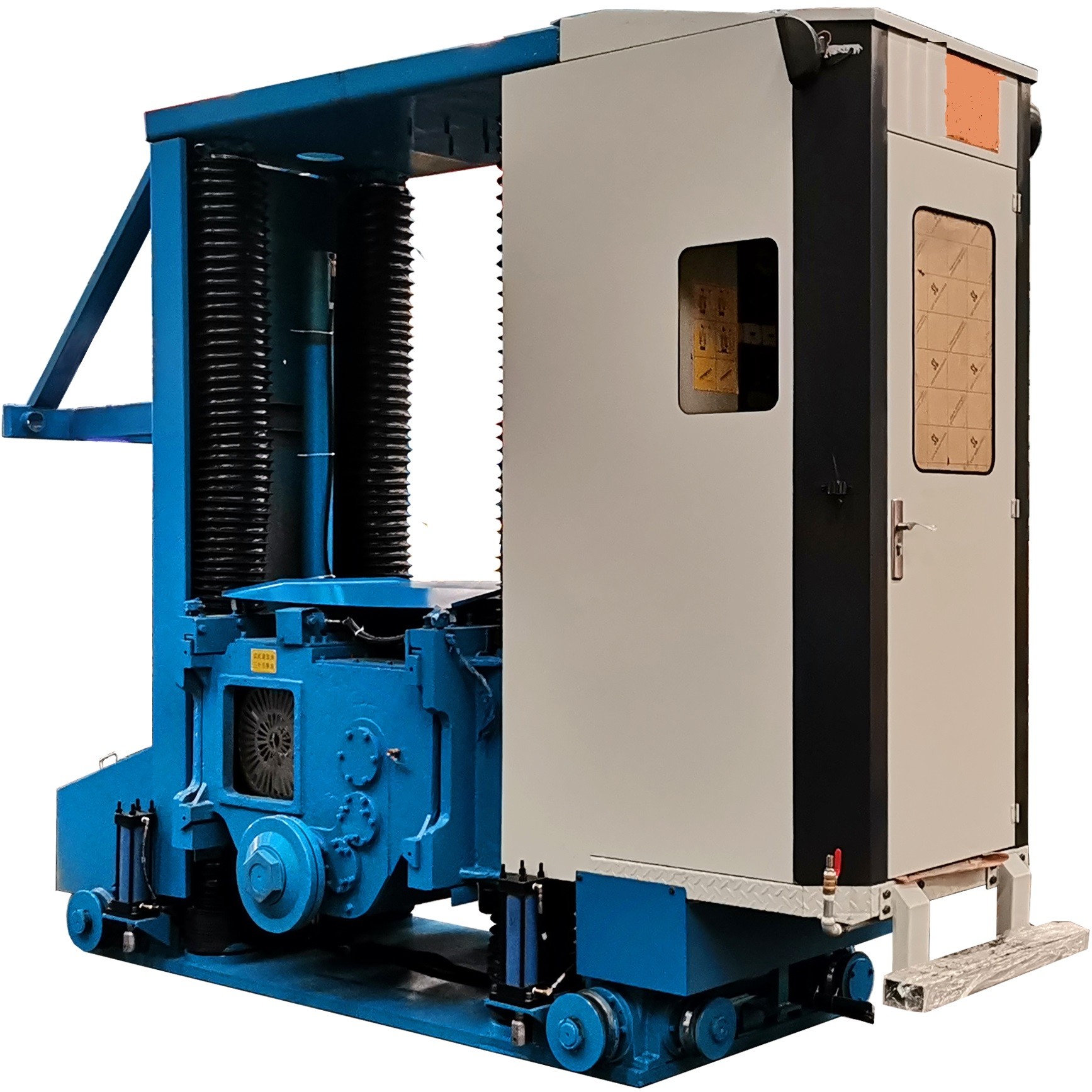

Stone Granite Mining Machine

Brand Name : StoneSawMachine.com

Model Number : MHLM-3600/4200

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, , T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 30 days after deposit

Packaging Details : Plastic FIlm

Voltage : 380V/50Hz,3ph

Weight : 10500KG

Use : granite and marble

Condition : New

Dimension(l*w*h) : 4000*2150*3500

Type : Stone Cutting Machine

Warranty : One Year

Control system : PLC SYSTEM

Product name : stone cutting machine

Color : customized

Motor : AC Servo System

Application : Stone Industrial

Spindle : 72KW

Name : stone cutting machine

Blade diameter : φ2600*2-φ3600*2-φ4200*2

Function : STONE CUTTING,Quarry stone

Keyword : Stone cutting machine,stone quarry machine

Contact Now

1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.

2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.

3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.

4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.

Name Unit MCHL-1950/2450-4200
Blade Diameter mm φ2600*2-φ3600*2-φ4200*2
Max cutting depth mm 1800
Cutting width mm 1950-2450
Water consumption m3/h 5
Main Motor power kw 55*2
Total power kw 120
Rails Center distance mm 1670

Overall dimension

(L*W*H)

 mm 4000*2150*3500
Approximate weight kg

10500
